Projecting Shield Anchor

As low as £0.1800

In stock

Only %1 left

SKU

0865P

Projecting Shield Anchor CR3 Steel

Diameter	Fastens	Hole Size	Pack Qty	SKU	Unit Price
M6	10mm	12mm	1	0865P610	£0.1800
M6	25mm	12mm	1	0865P625	£0.1900
M6	60mm	12mm	1	0865P660	£0.2400
M8	10mm	14mm	1	0865P810	£0.4000
M8	25mm	14mm	1	0865P825	£0.3300
M8	60mm	14mm	1	0865P860	£0.3300
M10	15mm	16mm	1	0865P1015	£0.4100
M10	30mm	16mm	1	0865P1030	£0.4100
M10	60mm	16mm	1	0865P1060	£0.4700
M12	15mm	20mm	1	0865P1215	£0.6500
M12	30mm	20mm	1	0865P1230	£0.6800
M12	75mm	20mm	1	0865P1275	£0.8300
M16	15mm	25mm	1	0865P1615	£1.4300
M16	35mm	25mm	1	0865P1635	£1.4500
M16	75mm	25mm	1	0865P1675	£1.7400

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

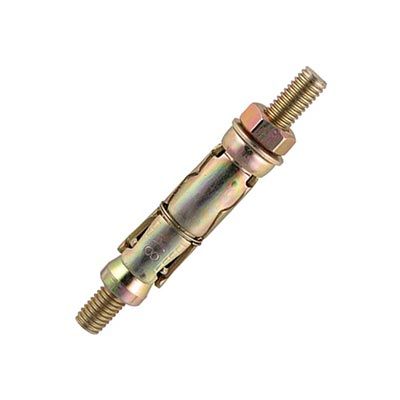

The Projecting Shield Anchor is a three way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brick work.

The projecting stud allows the fixture to be positioned into place then fastened secure

PLEASE SEE IMAGES FOR SIZE GUIDE
